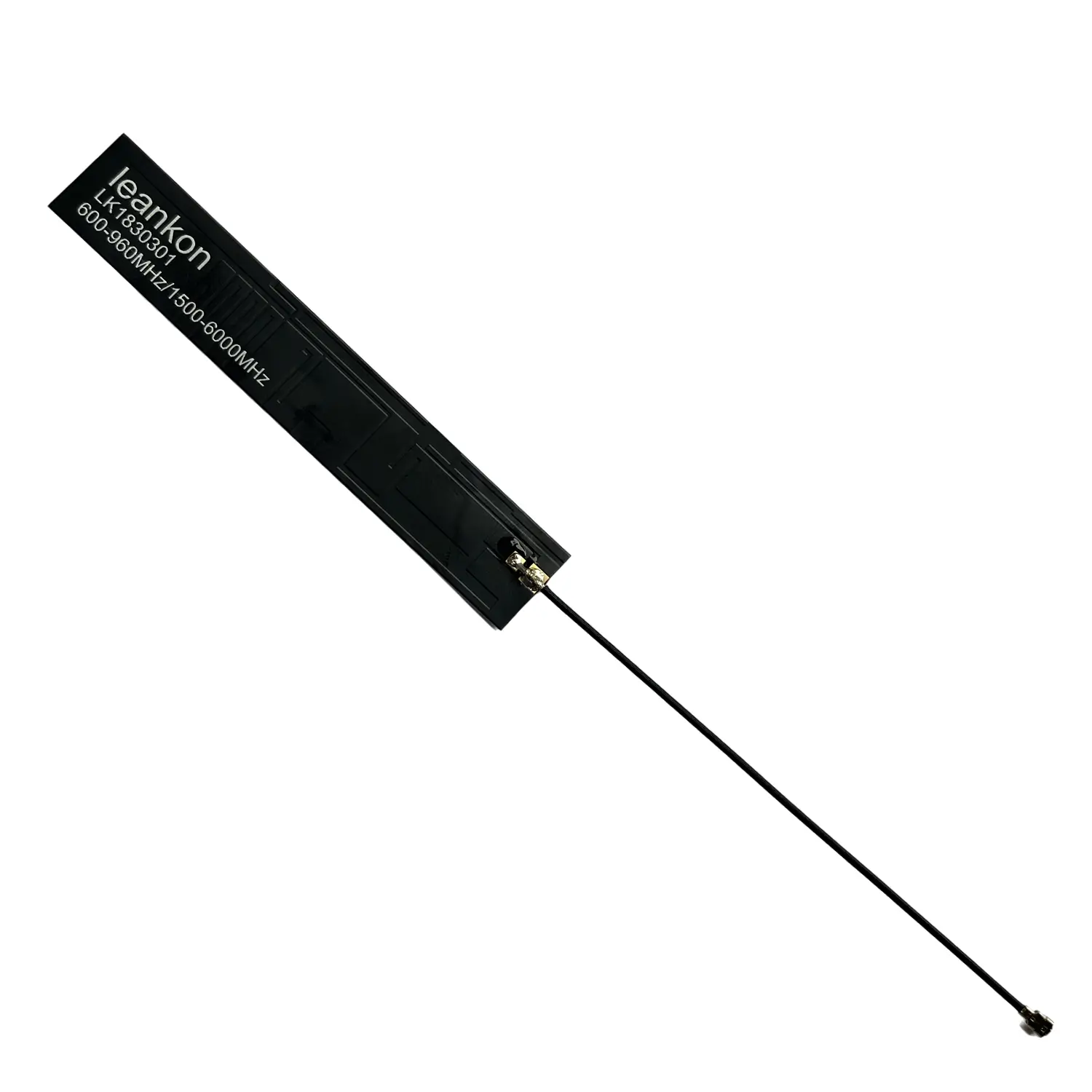

The LK1830301 is a FPC 5G antenna. It supports 5G NR sub-6GHz (FR1) full bands, 5G NTN n255/n256. 4G LTE full bands, LTE-CAT M series, NB-IoT and GNSS L1 simultaneously.
Part Number: LK1830301
Frequency: 600-960 MHz/1500-6000 MHz
Dimensions: 84.0 mm x 14.5 mm x 0.1 mm
RoHS Compliant
No MOQ Requirement
Free Evaluation Board & Samples
This antenna represents a breakthrough in 5G connectivity, combining ultra-thin design, high efficiency, and broad compatibility—making it ideal for diverse IoT and wireless applications. Engineered for performance, reliability, and cost-effectiveness, it is a key enabler for the future of wireless communication.
Flexible configurations: Available with different cable lengths and RF connectors to suit various applications.
Mechanical design support: Leankon provides assembly optimization to ensure optimal antenna performance and system cost efficiency.
Pre-testing services: Real-device testing minimizes certification risks and accelerates development cycles.
| Part Number | LK1830301 | |||
| Frequency (GHz) | 600-960 | 1525-1610 | 1710-2690 | 3300-6000 |
| S11 (Return Loss) (dB) | < -4.4 | < -6.0 | < -6.0 | < -5.0 |
| VSWR | < 4.0 | < 3.0 | < 3.0 | < 3.6 |
| Average Efficiency | > 40% | > 50% | > 50% | > 50% |
| Peak Gain (dBi) | 1.75 | 0.7 | 2.75 | 5.3 |
| Polarization | Linear | |||
| Radiation Pattern | Omni-directional | |||
| Antenna Type | Monopole | |||
| Impedance | 50 Ω | |||
| Connector Type | LK18303010xx | LK18303011xx | ||
Compatible MHF1 Plug | Compatible MHF4 Plug | |||
| Cable Diameter | Ø1.13 mm | |||
| Power Rating | 5 Watts | |||
| Operation Temperature | -40℃ to +85℃ | |||
| Storage Temperature | -40℃ to +85℃ | |||
