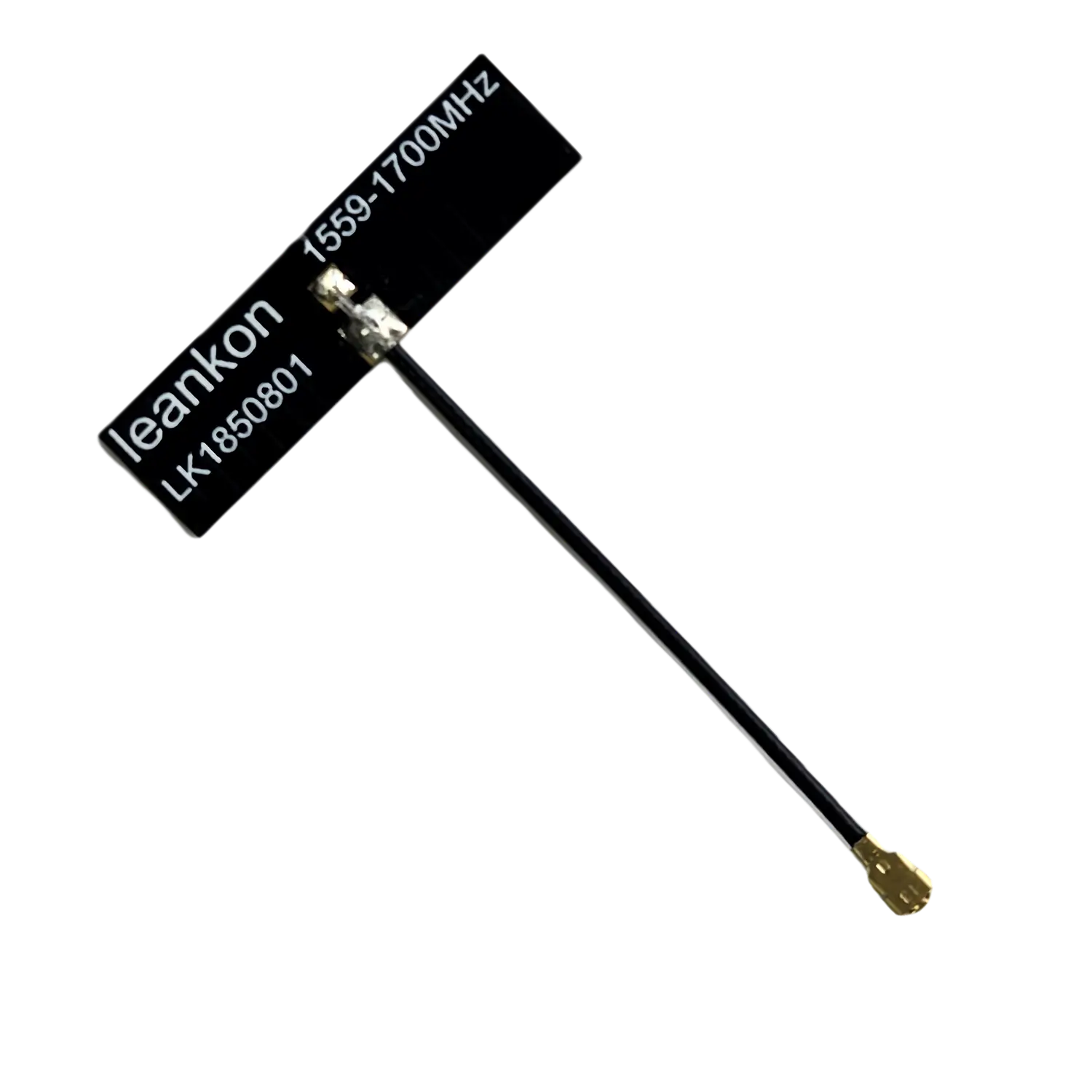

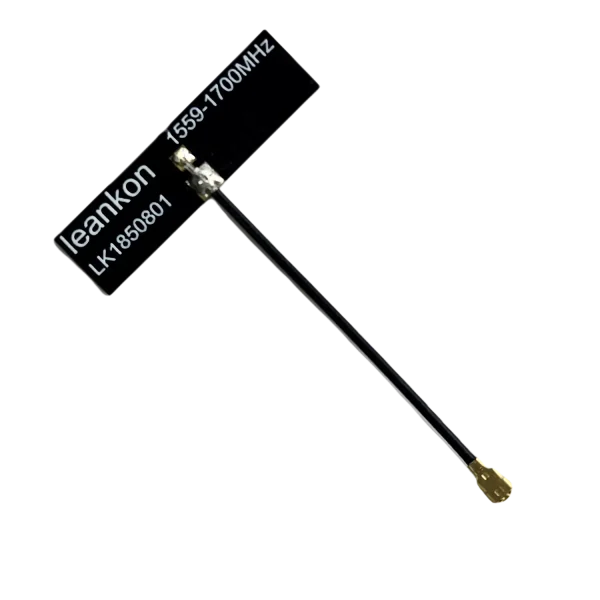

The LK1850801 series is a Dipole FPC L band satellite antenna designed for small devices. Additionally, it is compatible with NTN n255, GPS L1 1575.42MHz, GLONASS E1 and BEIDOU B1 enabling seamless multi-protocol connectivity.
Part Number: LK1850801
Frequency: 1525-1700MHz
Dimensions: 32.0 mm x 8.7 mm x 0.1 mm
RoHS Compliant
No MOQ Requirement
Free Evaluation Board & Samples
The LK1850801 series is a FPC L band satellite antenna operating at 1525-1700 MHz, with compact dimensions of 32mm × 8.7mm × 0.1mm. It is also compatible with NTN n255, GPS L1 1575.42MHz, GLONASS E1, and BEIDOU B1 applications.
This antenna delivers stable performance, unaffected by cable length or RF connector variations. Its omni-directional radiation pattern ensures wide coverage and strong signal reception, maintaining reliable GPS and satellite communication
For specialized needs, Leankon provides custom design services when standard products do not meet your requirements.
| Part Number | LK1850801 | |
| Frequency (MHz) | 1525-1610 | 1610-1700 |
| S11 (Return Loss) (dB) | < -4.5 | < -5.9 |
| VSWR | < 4.0 | < 3.1 |
| Average Efficiency | > 50% | > 55% |
| Peak Gain (dBi) | 0.1 | 0.44 |
| Polarization | Linear | |
| Radiation Pattern | Omni-directional | |
| Antenna Type | Dipole | |
| Impedance | 50 Ω | |
| RF Connector Type | LK185080100x | LK185080110x |
Compatible MHF 1 Plug | Compatible MHF 4 Plug | |
| Cable Diameter | Ø1.13mm | |
| Power Rating | 5 Watts | |
| Operation Temperature | -40℃ to +85℃ | |
| Storage Temperature | -40℃ to +85℃ | |
